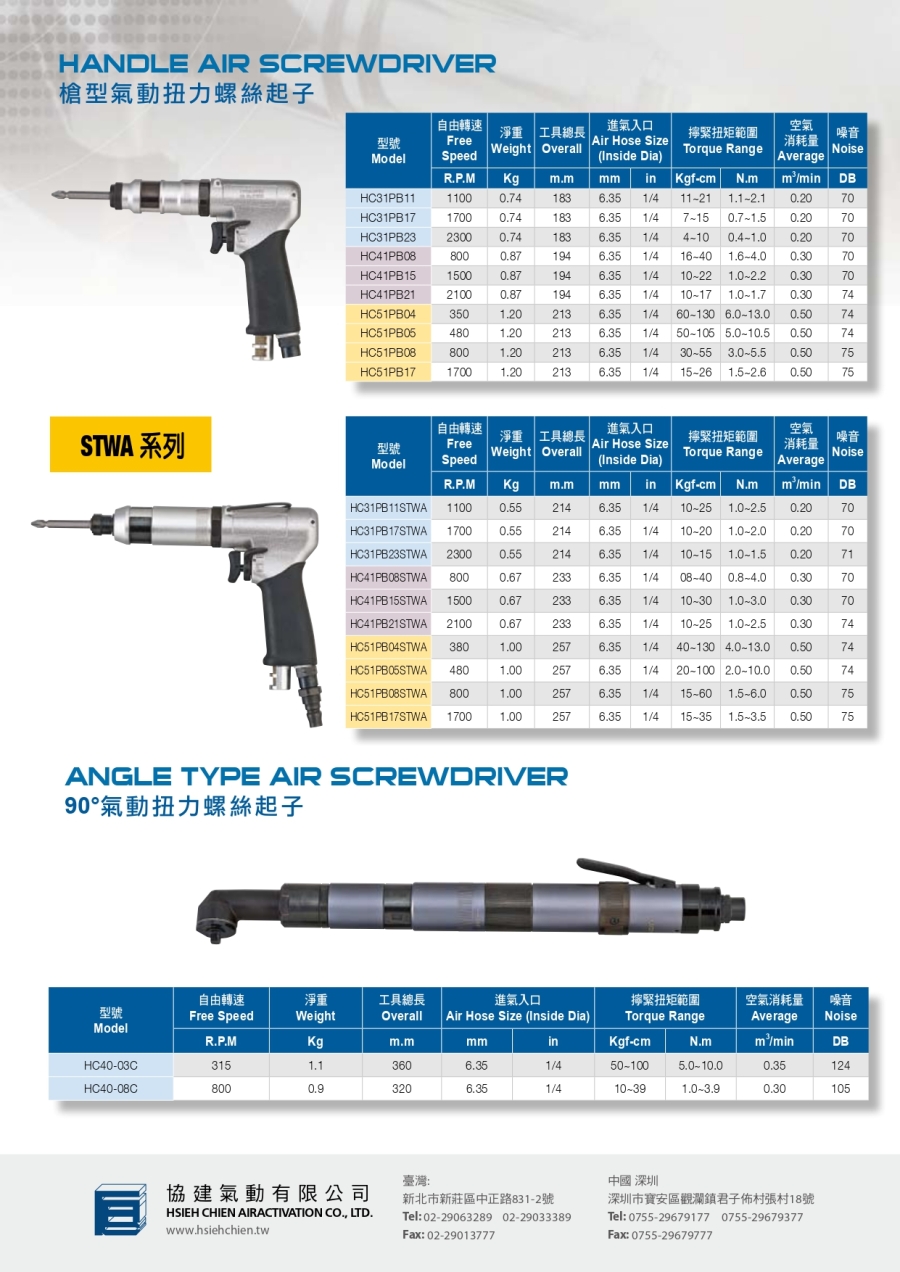

HC-31PB/41PB/51PB
手持輕、不扭手
單手操作正反轉
按鈕式開關
後排氣
扭力到達後即停止
產品數據
型號 Model | 自由轉速 Free Speed | 淨重 Weight | 工具總長 Overall | 進氣入口 Air Hose Size (Inside Dia) | 擰緊扭矩範圍 Torque Range | 空氣消耗量 Average | 噪音 Noise | ||
R.P.M | Kg | m.m | mm | in | Kgf-cm | N.m | m3/min | DB | |
HC31PB11 | 1100 | 0.71 | 183 | 6.35 | 1/4 | 11~21 | 1.1~2.1 | 0.20 | 70 |
HC31PB17 | 1700 | 0.71 | 183 | 6.35 | 1/4 | 7~15 | 0.7~1.5 | 0.20 | 70 |
HC31PB23 | 2300 | 0.71 | 183 | 6.35 | 1/4 | 4~10 | 0.4~1.0 | 0.20 | 70 |
HC41PB08 | 800 | 0.87 | 209 | 6.35 | 1/4 | 16~40 | 1.6~4.0 | 0.30 | 70 |
HC41PB15 | 1500 | 0.87 | 209 | 6.35 | 1/4 | 10~22 | 1.0~2.2 | 0.30 | 70 |
HC41PB21 | 2100 | 0.87 | 209 | 6.35 | 1/4 | 10~17 | 1.0~1.7 | 0.30 | 74 |
HC51PB04 | 350 | 1.20 | 217 | 6.35 | 1/4 | 60~130 | 6.0~1 3 | 0.50 | 74 |
HC51PB05 | 480 | 1.20 | 217 | 6.35 | 1/4 | 50~105 | 5.0~1 0 | 0.50 | 74 |
HC51PB08 | 800 | 1.20 | 217 | 6.35 | 1/4 | 30~55 | 3.0~5.5 | 0.50 | 75 |
HC51PB17 | 1700 | 1.20 | 217 | 6.35 | 1/4 | 15~26 | 1.5~2.6 | 0.50 | 75 |
手持輕、不扭手
單手操作正反轉
按鈕式開關
後排氣
扭力到達後即停止
產品數據
型號 Model | 自由轉速 Free Speed | 淨重 Weight | 工具總長 Overall | 進氣入口 Air Hose Size (Inside Dia) | 擰緊扭矩範圍 Torque Range | 空氣消耗量 Average | 噪音 Noise | ||
R.P.M | Kg | m.m | mm | in | Kgf-cm | N.m | m3/min | DB | |
HC31PB11 | 1100 | 0.71 | 183 | 6.35 | 1/4 | 11~21 | 1.1~2.1 | 0.20 | 70 |
HC31PB17 | 1700 | 0.71 | 183 | 6.35 | 1/4 | 7~15 | 0.7~1.5 | 0.20 | 70 |
HC31PB23 | 2300 | 0.71 | 183 | 6.35 | 1/4 | 4~10 | 0.4~1.0 | 0.20 | 70 |
HC41PB08 | 800 | 0.87 | 209 | 6.35 | 1/4 | 16~40 | 1.6~4.0 | 0.30 | 70 |
HC41PB15 | 1500 | 0.87 | 209 | 6.35 | 1/4 | 10~22 | 1.0~2.2 | 0.30 | 70 |
HC41PB21 | 2100 | 0.87 | 209 | 6.35 | 1/4 | 10~17 | 1.0~1.7 | 0.30 | 74 |
HC51PB04 | 350 | 1.20 | 217 | 6.35 | 1/4 | 60~130 | 6.0~1 3 | 0.50 | 74 |
HC51PB05 | 480 | 1.20 | 217 | 6.35 | 1/4 | 50~105 | 5.0~1 0 | 0.50 | 74 |
HC51PB08 | 800 | 1.20 | 217 | 6.35 | 1/4 | 30~55 | 3.0~5.5 | 0.50 | 75 |
HC51PB17 | 1700 | 1.20 | 217 | 6.35 | 1/4 | 15~26 | 1.5~2.6 | 0.50 | 75 |
